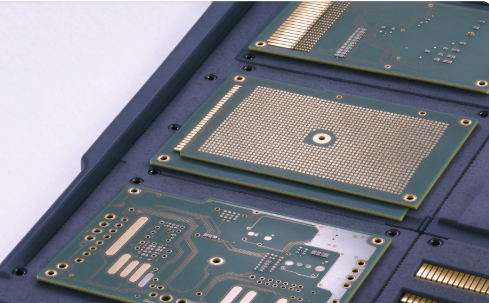

PCB surface finishes are critical protective layers plated or coated on exposed copper traces.It prevents copper oxidation during long-term storage and SMT assembly, and guarantees reliable solderability for component soldering. Choosing the right surface finish directly impacts product lifespan, manufacturing cost, thermal performance and final production yield. With multiple finish options available on the market, many electronics hardware designers struggle to decide which treatment fits their PCB project best.
Each surface finish has unique physical and chemical characteristics. Some are designed for low-cost mass manufacturing, while others are built to withstand harsh operating environments, frequent plugging and high-temperature working conditions. Understanding these differences helps you avoid costly rework, reliability failures and unnecessary budget waste at the early design stage.
ASL (Hot Air Solder Leveling)
HASL is the traditional and cost-effective finish widely used for decades. The bare PCB board is fully dipped into molten solder, then high-pressure hot air blows off excess solder from pads and traces. Pros: Low cost, good solderability, easy rework for board repair. Cons: Uneven surface height, not ideal for fine-pitch components, introduces high thermal stress to the PCB substrate. Best for: General consumer electronics, large solder pads, non-high-density standard PCBs.
ENIG (Electroless Nickel Immersion Gold)
ENIG is the most popular finish for industrial and high-reliability products. A dense nickel barrier layer covers copper, topped with an ultra-thin gold layer. Pros: Flat and smooth surface, excellent oxidation resistance, great for fine pitch BGA chips, long shelf life. Cons: Higher cost, risk of black pad defect if manufacturing process control is poor. Best for: Access control, security systems, LED driver boards, HDI PCB and precision BGA assembly.
OSP (Organic Solderability Preservative)
OSP is a thin organic coating applied on bare copper. It is eco-friendly and affordable for mass volume orders. Pros: Low cost, perfectly flat surface, no heavy metal materials. Cons: Very thin protection layer, short shelf life, sensitive to multiple reflow cycles. Best for: Simple double-sided boards, mass consumer products with fast assembly after PCB delivery.
Hard Gold Plating
Hard gold plating uses thick gold coating mixed with nickel alloy. It offers outstanding wear resistance against repeated physical contact. Pros: Strong abrasion resistance, stable conductivity for repeated connection. Cons: Expensive compared with other surface treatments. Best for: Edge connector fingers, test probes, switch contacts on fire alarm and security devices.
Immersion Silver / Immersion Tin
Immersion silver delivers excellent solderability and ultra-flat surface. Immersion tin is widely adopted for large-batch mass production. Both belong to medium-cost options. Limitation: Silver tarnish and tin whisker risks must be strictly controlled during fabrication. Best for: Industrial controls, traffic control electronics and low-to-medium reliability circuits.
How to Choose the Right Finish
You need to check component pitch, SMT assembly process, required shelf life, operating working environment and total project budget. Fine pitch and BGA parts usually require ENIG. Low-cost mass production can adopt HASL or OSP. Connector fingers for repeated plugging need hard gold.
Also, you should evaluate your target market’s end-use environment. Outdoor traffic control boards and fire alarm electronics often face humidity, temperature swings and dust exposure, which raises higher requirements for surface finish corrosion resistance. Indoor access control and LED circuit boards have milder working conditions, allowing more finish options to balance cost and performance.
