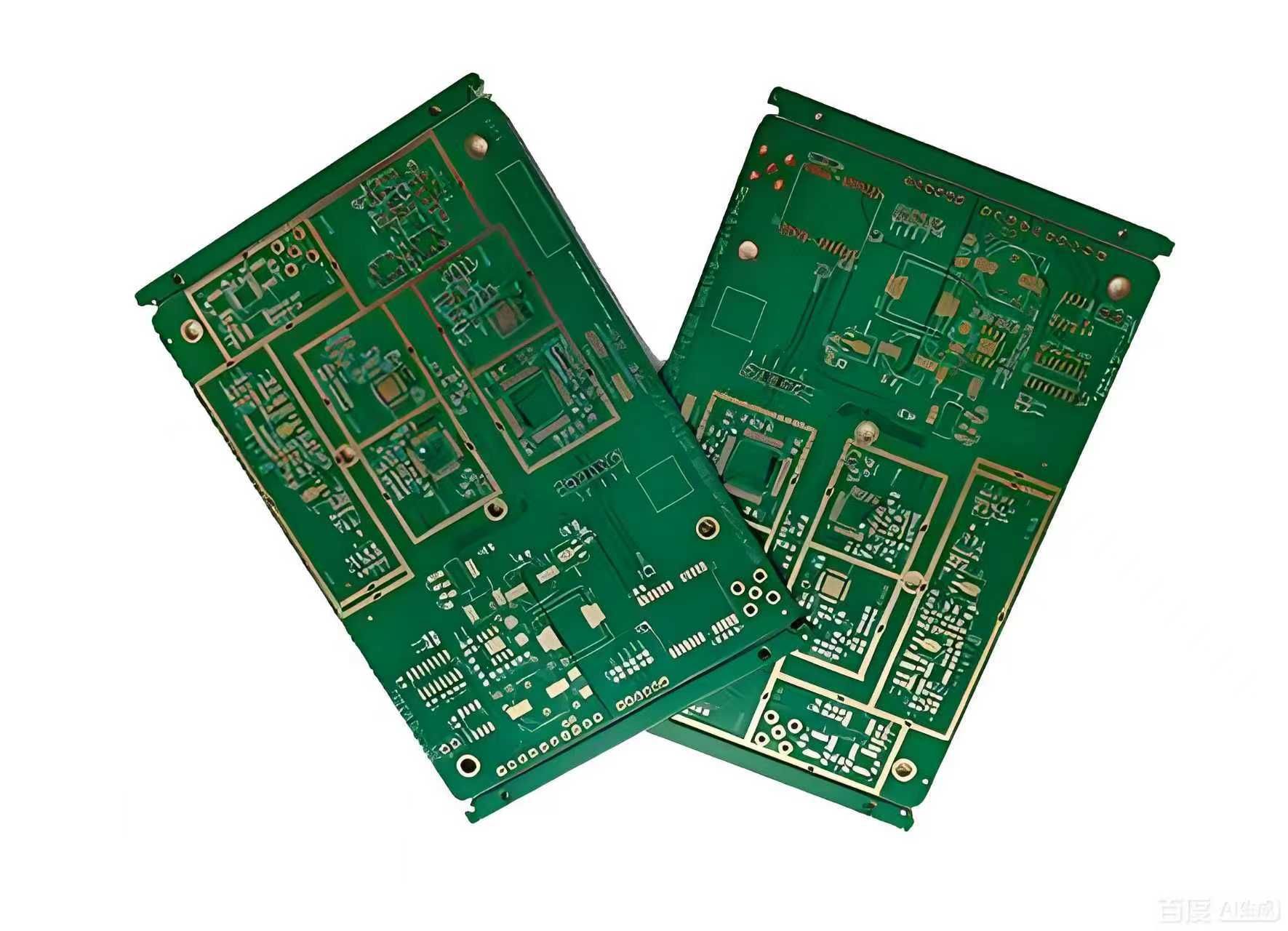

This 2-layer FR4 rigid PCB is a cost-effective prototype circuit board. FR-4 epoxy glass fiber substrate, 1.6mm thickness, HASL surface finish. Suitable for consumer electronics prototype testing. We support Gerber file check, fast turnaround for small batch and prototype orders.
Parameters and Specifications
| Item | Typical Value |
|---|---|
| Layers | 2 layers (double-sided) |
| Material | FR4 (Standard / High Tg) |
| Board Thickness | 0.4–2.0 mm (typical 1.6 mm) |
| Copper Thickness | 0.5–2 oz (typical 1 oz) |
| Min Trace/Space | 8/8–6/6 mil |
| Min Hole Size | 0.3 mm (mechanical) |
| Surface Finish | HASL / ENIG / OSP |
| Solder Mask | Green/Black/Blue/White LPI |
| Impedance Control | Optional (minimal for 2-layer) |
| UL Rating | UL 94V-0 |
| Lead Time | Fast prototype (24–72h) |
Solder Mask
- LPI (Liquid Photo-Imageable) solder mask; primarily green, with black, blue, and white options available.
- Features uniform thickness, high dielectric strength, and resistance to moisture and scratching.
- Precise solder pad openings; via plugging available to prevent short circuits.
Design & Manufacturing Advantages
- Rapid Prototyping: Small batches with short lead times (24–72h), ideal for prototype validation.
- Low Cost: Double-sided FR4 technology is mature and cost-effective.
- High Flexibility: Trace widths, spacing, and hole locations follow the design; supports rapid iteration.
- Manufacturability: Standard CNC drilling/milling, HASL or ENIG finishes, and flying probe testing.
- DFM-Friendly: Validate designs and functionality before transitioning to mass production.
Applications
- New product prototype verification and functional debugging
- Small-batch trial production; test boards / fixture boards
- Education / scientific research and project validation
- Consumer electronics, simple industrial control circuits, and power modules
Volectronics Tech Co., Ltd has been supplying high-quality PCB and PCBA to clients worldwide since 2017 — from prototype to mass production.
Welcome to contact us for more details.
