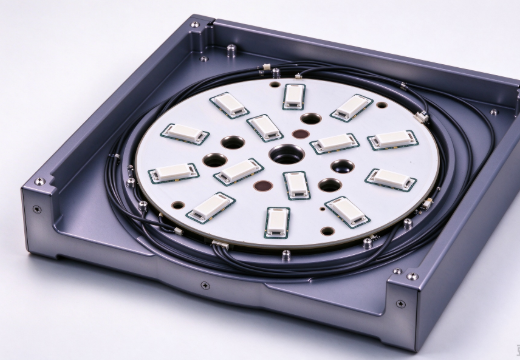

MCPCB LED SMT to lighting box build assembly covers the full turnkey journey many lighting engineers need. Many lighting buyers and designers only focus on MCPCB fabrication and LED SMT Assembly. They overlook the extra integration work needed to turn a soldered PCBA into a usable luminaire. A standalone MCPCB with LEDs is just a circuit board; lighting box build assembly covers all remaining integration steps to deliver a fully tested, ready-to-use lighting unit.
I. What is the difference between MCPCB LED SMT and Lighting Box Build
MCPCB LED SMT is the core soldering process that mounts LED chips and passive components onto the metal core PCB. The deliverable after SMT is only a bare assembled PCBA. On the other hand, lighting box build assembly takes the finished MCPCB LED PCBA as one component, then combines it with housing, heat sink, cables, connectors, drivers and seals.
- MCPCB LED SMT output: Aluminum core PCB with LEDs and components soldered
- Lighting box build output: Fully assembled, tested luminaire module ready for end installation
You can learn more about standard soldering procedures in our guide on SMT PCB Assembly.
II. Standard Workflow: From MCPCB LED SMT to Lighting Box Build
- DFM review for MCPCB layout, LED thermal pads and mechanical fit with the lighting enclosure
- MCPCB fabrication + SMT assembly, followed by AOI and X-ray void inspection
- Auxiliary component sourcing: cables, connectors, gaskets, LED drivers and housings
- Secondary mechanical assembly: Fix the MCPCB PCBA into the heat sink/housing, crimp and route cable harnesses
- Firmware programming, if you need dimmable or smart LED control functions
- Functional lighting test, burn-in aging test, and optional IP rating test for outdoor applications
- Final visual inspection, labeling, ESD-safe packaging and shipment
III. Key Design Matching Points Between MCPCB LED and Enclosure
Mismatch between MCPCB design and housing is one of the top causes of project delays, light decay and early LED failure. Thermal and mechanical design must be coordinated from the start.
(1) .Thermal interface matching between MCPCB backside and heat sink
Flatness of the MCPCB base, thickness of thermal pads or thermal grease directly decides heat transfer efficiency for high-power LEDs. Poor contact creates thermal resistance, pushing up junction temperature and accelerating brightness loss. If you are comparing thermal substrate options for high-heat LEDs, check our article about AlN ceramic board vs aluminum substrate.
(2). Mounting hole tolerance and positioning
The thin dielectric layer of MCPCB is fragile under uneven stress. Mounting holes must align precisely with the enclosure posts. Misaligned holes will crack the insulation layer when screws are tightened.
(3). Cutout and clearance for cables and connectors
Reserve enough space for wiring and connectors at the PCB design stage. It is costly and risky to rework an already soldered LED MCPCBA. For layout rules for LED circuits, visit our LED PCB design guide.
IV. Common Risks During Lighting Box Build for MCPCB LED Modules
- Over-tightened screws: Too much pressure cracks the MCPCB dielectric layer; loose screws create thermal gaps between MCPCB and heat sink
- Cable pulling stress: Improper wiring routing tugs at LED solder joints and triggers intermittent open circuits
- ESD damage: Bare LED chips remain sensitive to static shocks during manual assembly
- Sealing failure for outdoor lights: Misplaced gaskets lead to water and dust ingress
V. Our One-Stop Service for LED Lighting Box Build
✅ No MOQ available for prototype samples and small-batch lighting projects
✅ RoHS and UL compliant assembly
✅ Combine MCPCB manufacturing, LED SMT, cable harness assembly and box build under one order
✅ Optional X-ray void inspection and long-duration aging test for high-power LED modules
✅ Flexible lead time for samples and mass production orders
VI.Volectronics Company
We focus on reliable metal core PCB and turnkey assembly solutions for industrial and commercial LED lighting. Our engineering team reviews thermal performance, mechanical fit and manufacturability before production to avoid common box build pitfalls. Whether you only need LED SMT service or full lighting integration, we support your project from prototype to volume shipment.
