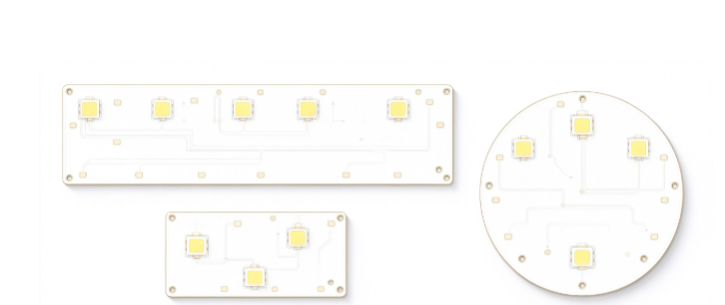

MCPCB LED & SMT PCB Assembly Service delivers reliable turnkey PCBA solutions for high-power LED lighting modules, with strict thermal control and void inspection during soldering.Our integrated MCPCB LED and SMT PCB assembly service combines metal core PCB manufacturing and SMD component mounting in one stop, helping lighting brands cut sourcing cycles and reduce quality risks.
I. What is MCPCB for LED?

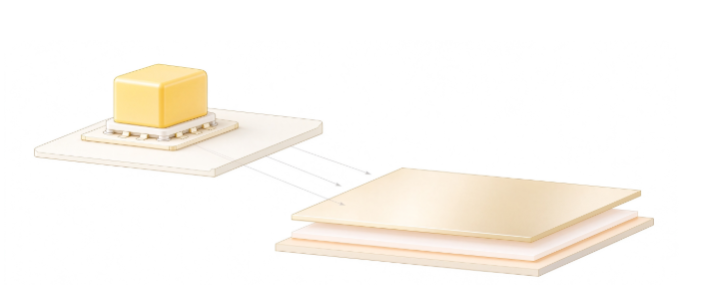

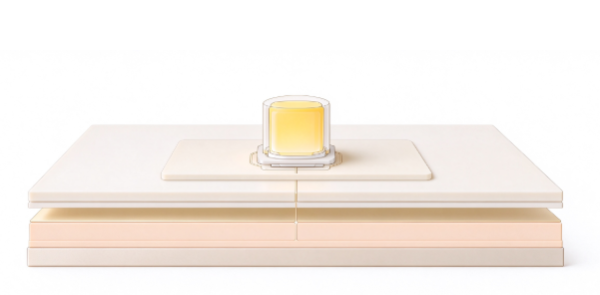

MCPCB (Metal Core PCB, also known as aluminum PCB) is the ideal substrate for high-power LEDs. Compared with standard FR-4 PCB, its aluminum base delivers much better heat dissipation, which keeps LED junction temperature low, stabilizes luminous flux and extends LED service life. We support custom MCPCB size, copper thickness, thermal dielectric thickness, immersion gold / HASL surface finish for your LED modules. For applications with extreme thermal requirements, check our guide on AlN ceramic board vs aluminum substrate to compare substrate options.
II. One-Stop SMT PCB Assembly for MCPCB LED

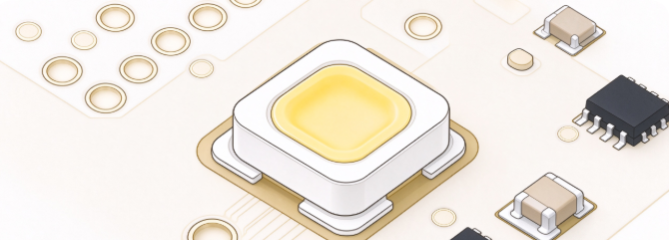

We provide full SMT PCB assembly service specially optimized for LED MCPCB. Our SMT line is tuned for LED chips, resistors, capacitors and other SMD parts:
- Precision solder paste printing and reflow soldering, strictly control void rate under LED thermal pad
- AOI automatic optical inspection after assembly
- Custom BOM sourcing support for LED components
- Finished assembled LED MCPCB modules ready for your final lighting assembly
If you want to optimize thermal layout before production, check our practical guide on LED PCB design.
III. Our Commercial Terms for MCPCB & SMT Assembly
✅ MOQ
We support orders with NO minimum order quantity. Whether you only need 1 piece for lab testing, small prototype batches or mass-volume production, we can arrange production for your MCPCB LED and SMT PCB assembly project. Unit price will vary based on order quantity. Small quantity orders carry slightly higher unit cost due to setup and tooling expense.
✅ Lead Time
- Bare MCPCB prototype: 3–5 working days
- SMT assembled MCPCB LED sample order: 5–7 working days
- Mass production lead time: 7–12 working days Urgent orders are acceptable upon communication.
✅ Certifications: UL & RoHS
All our MCPCB materials and finished SMT assemblies comply with RoHS environmental requirements, suitable for EU and global lighting markets. We use UL-recognized thermal dielectric and base material for MCPCB, traceable material reports available on request.
✅ Sample Service
Sample testing is critical before formal batch order. We support custom sample service for your MCPCB LED + SMT assembly: You can send Gerber files and BOM list to get functional assembled samples. Sample cost will be refundable when your formal bulk order reaches the agreed quantity.
IV. Typical Applications of Assembled MCPCB LED
Our SMT-mounted MCPCB LED modules are widely used in: Street lights, flood lights, high bay lights, automotive auxiliary lights, plant grow lights, commercial downlights and stage lighting.
V. Why Choose Volectronics for MCPCB and SMT PCB Assembly?
At Volectronics, we focus on thermal PCB and SMT assembly for LED customers. We do not only produce bare aluminum core boards, but also handle the whole SMT assembly process under one roof. Our engineering team will review your Gerber and BOM in advance, point out thermal risks and manufacturability suggestions before production, to avoid rework and delay. We keep transparent communication on production progress, provide inspection photos before shipment, and offer after-sales technical support for thermal and soldering issues.
VI. FAQ About MCPCB LED & SMT PCB Assembly
🟢Do you have MOQ for MCPCB and SMT assembly orders?
No, we have no minimum order quantity. You can order just 1 piece for prototype testing. Please note that the unit price will be higher for ultra-small orders because of machine setup and fixture costs.
🟢What certifications can you provide for assembled MCPCB LED boards?
Our MCPCB materials and finished SMT assemblies meet RoHS requirements. We adopt UL-listed substrate materials, and relevant material certificates can be provided upon request.
🟢How long is the lead time for MCPCB + SMT PCB assembly samples?
Normally 5–7 working days for assembled MCPCB LED samples. We also support rush production if you have tight schedules.
🟢Can you assemble LEDs and other SMD components on my supplied MCPCB?
Yes. We offer consignment SMT service. You can provide bare MCPCBs, BOM and components, and we finish the SMT soldering, inspection and testing.
🟢Can the sample cost be refunded?
Normally, the sample cost is non-refundable. It can be deducted from your bulk order payment only if your formal order reaches our agreed quantity requirement.
VII. Get Your MCPCB + SMT Assembly Quote Now
Ready to start your LED project? Send your Gerber file, BOM list and requirements (quantity, surface finish, certification request) to us. Our sales and engineering team will reply with a detailed quotation quickly.
