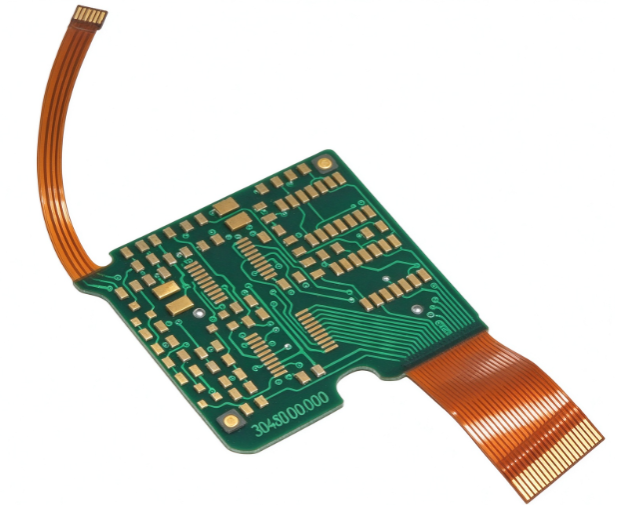

Our Prototype Customized Medical & Industrial Grade Rigid-Flex PCB delivers reliable flex life and stable signal performance for medical diagnostic devices, industrial cameras and robotic control modules.
Key Benefits
✅ Integrate rigid FR4 and flexible PI polyimide substrate, replace connector & cable assembly, reduce BOM cost
✅ Custom prototype & volume production available, support complex 3D assembly space saving
✅ Medical & industrial reliability standard, high flex endurance, stable performance under vibration
✅ Support multilayer stack, HDI microvia, controlled impedance traces for high-speed signal
✅ Excellent resistance to bending, shock, thermal cycling and chemical cleaning
✅ Multiple surface finish options: ENIG, Hard Gold, HASL, OSP, meet medical biocompatible process requirement
✅ Low failure rate: fewer solder joints, eliminate loose contact risks from wiring harness
✅ Custom stack-up, bend area design, coverlay opening per your Gerber & mechanical requirement
Specifications
| Item | Specification |
|---|---|
| Product Name | Prototype Customized Medical & Industrial Grade Rigid-Flex PCB |
| Substrate Material | Rigid part: FR-4 / High Tg FR4; Flexible part: Polyimide (PI) film |
| Flexible Coverlay | PI coverlay + Adhesive / Adhesiveless coverlay (high reliability option) |
| Layer Count | 2~12 layers (custom stack-up) |
| Copper Foil | Electrolytic copper / Rolled annealed copper (RA copper, bending zone preferred) |
| Copper Thickness | 0.5oz, 1oz, 2oz |
| Min Trace / Space | 0.075mm / 0.075mm (HDI option down to 0.05mm) |
| Min Bend Radius | ≥ 6×flex core thickness (standard design rule) |
| Surface Finish | ENIG, Hard Gold plating, OSP, Immersion Silver, Immersion Tin |
| Tolerance | Outline ±0.10mm; Trace width ±0.03mm |
| Flex Cycles | Up to 100,000+ bending cycles (RA copper + adhesiveless coverlay structure) |
| Operating Temp Range | -40℃ ~ +125℃ |
| Typical Stack Type | Flex only, Rigid-Flex, Flex-Rigid, HDI Rigid-Flex |
Signal Performance Features
- Controlled Impedance Support Support 50Ω, 90Ω, 100Ω differential impedance for USB, LVDS, HDMI, high-speed serial signal; impedance simulation and coupon test available.
- Signal Integrity Stability Continuous copper trace without connector transition, reduce insertion loss, reflection and crosstalk compared with separate FPC + wire harness.
- Low Noise & EMI Control Can design continuous ground plane across rigid-flex transition zone, good shielding for industrial sensor and medical low-noise acquisition circuits.
- High-speed capability Adhesiveless PI flex material has stable Dk, less signal attenuation for high-speed differential signal transmission.
- Important note：Bending deformation will slightly change impedance; we will provide DFM suggestion to avoid high-speed differential lines located inside dynamic bending zone.
Manufacturing Advantages
- Symmetric lamination process, strictly control warpage, suitable for SMT mass assembly
- RA rolled annealed copper for bending area, greatly extend flex cycle life
- Adhesiveless coverlay option for medical grade, lower ion migration, better resistance to humidity and cleaning solvent
- Laser routing & laser coverlay opening: clean edge, no burr, reduce stress point
- Plasma desmear process for microvia / HDI structure, reliable interlayer connection
- In-process electrical open/short test + impedance test + bending fatigue sample validation for high-reliability orders
- Comply with IPC-6013, IPC-2221 rigid-flex standard; can support material traceability report for medical project audit
- Prototype fast turnaround service for medical R&D verification
Application Scenarios
Medical Grade
- Minimally invasive surgical instruments, endoscope camera module
- Portable patient monitors, wearable medical sensors
- Implant auxiliary diagnostic equipment (non-implant class)
- Medical handheld diagnostic devices
Industrial Grade
- Industrial inspection camera, vision sensor module
- Robotic arm internal wiring, servo control unit
- Portable test & measurement instrument
- Transportation / vehicle onboard control electronics
- Vibration & shock environment industrial control modules
