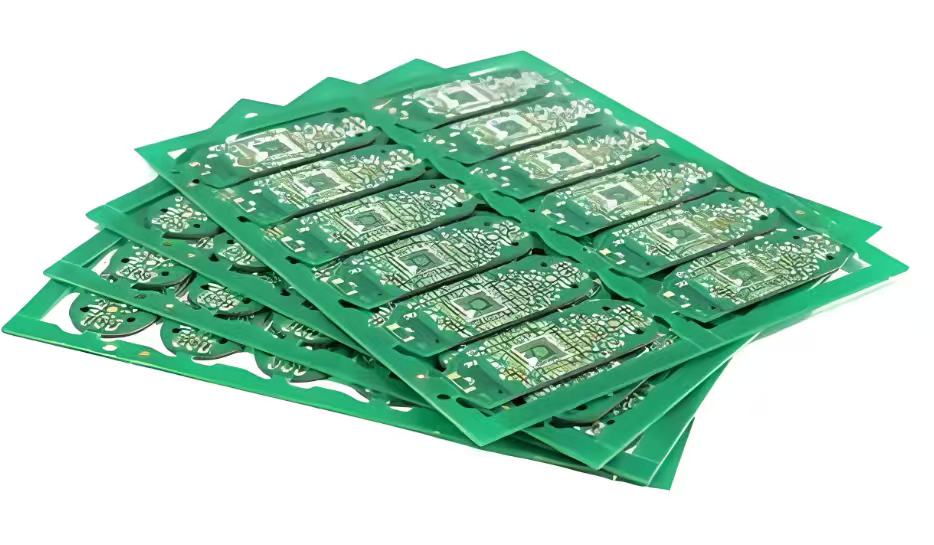

Our FR4 Rigid PCB is widely used for single-sided, double-sided and multilayer circuit boards. As a reliable FR4 Rigid PCB manufacturer, Volectronics Tech provides custom PCB fabrication, quick-turn prototyping and mass production service. We support custom copper thickness, surface finish, impedance control and strict IPC quality standard for industrial, automotive and consumer electronics applications.
Specifications
| Item | Typical Value |
|---|---|
| Layers | 1 / 2 to Multilayer (4–20L) |
| Material | FR4 (Standard / High Tg 150–170°C) |
| Board Thickness | 0.4–3.2 mm |
| Copper Thickness | 0.5–3 oz |
| Min Trace/Space | 8/8 mil (1L) → 3/3 mil (Multilayer) |
| Min Hole Size | 0.2 mm (mechanical) |
| Surface Finish | HASL / ENIG / OSP / Immersion Silver/Tin |
| Solder Mask | Green/Black/Blue/White LPI |
| Flame Rating | UL 94V-0 |
Solder mask characteristics
- LPI (Liquid Photo-Imageable) solder mask—primarily green, with other colors available;
- Uniform thickness, high dielectric strength, and resistance to moisture and scratching;
- Precise solder mask openings; via plugging available to prevent short circuits.
Design and Manufacturing Features
- Multi-layer solid power and ground planes supporting controlled impedance;
- CNC drilling and routing, HASL / ENIG finishes, and flying-probe / impedance testing;
- Panelization with V-scoring / tooling strips, suitable for mass production;
- High-Tg materials for high-temperature resistance and reliability across a wide temperature range.
Application scenarios
The vast majority of electronic products, including consumer electronics, industrial controls, communication equipment, power modules, automotive electronics, medical equipment, and industrial automation systems.
