Technical Specifications (Table)
| Item | Typical Value |
|---|---|

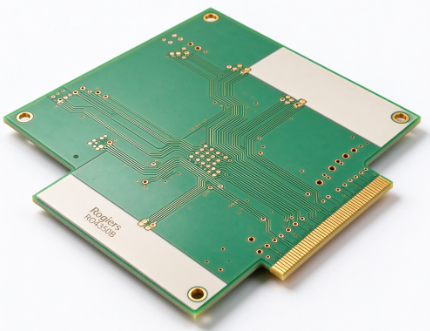

| Material Type | Rogers RO4350B (Hydrocarbon/Ceramic) |
| Stackup | RO4350B high-frequency layers + FR4 inner layers (Hybrid) |
| Dielectric Constant Dk | 3.48 ±0.05 (10 GHz) |
| Dissipation Factor Df | 0.0037 (10 GHz) |
| Frequency Range | DC ~ 15 GHz |
| Layers | 2–10 layers (Hybrid) |
| Copper Thickness | 1 oz (HVLP low-roughness optional) |
| Min Trace/Space | 4/4–3/3 mil |
| Impedance Control | 50/100Ω, ±5–10% |
| Board Thickness | 0.8–2.4 mm |
| Surface Finish | ENIG / Immersion Tin / OSP |
| Water Absorption | ≤0.05% (low) |
| Flame Rating | UL 94V-0, Halogen-Free |
| Operating Temp. | −55 ~ +150°C |
Manufacturing Advantages
- Hybrid Stack-up Design: Combines an RO4350B RF layer (for high performance) with FR4 inner layers (to reduce costs), offering an excellent price-to-performance ratio.
- Low Loss (Df 0.0037): Minimizes RF signal attenuation; ideal for power amplifiers and antennas.
- Stable Dk (±0.05): Ensures consistent impedance and low signal reflection.
- Low Moisture Absorption: Provides dimensional stability and strong environmental adaptability.
- Fiber-Weave Effect Control: Utilizes spread-glass or homogenized-glass technology to ensure superior phase consistency.
- Optional HVLP Copper Foil: Reduces conductor loss—a critical factor for millimeter-wave (mmWave) applications.
- Mature Manufacturing Process: Highly compatible with standard FR4 fabrication, ensuring ease of processing and cost-effectiveness.
Signal & Electrical Performance
Low Insertion Loss & Low Return Loss: Enables precise 50Ω impedance matching.
Phase Consistency: Well-suited for phased-array systems and beamforming applications.
Low Dielectric Loss: Supports high-frequency RF links while maintaining signal integrity.
High-Frequency Capability: Covers the DC to 15GHz range; ideal for communications, radar, and antenna systems.
Stable Dk/Df: Minimal variation across frequencies, ensuring reliable parameters.
Low Moisture Absorption: Maintains stable electrical performance even in humid environments.
Volectronics Tech Co., Ltd specializing in advanced PCBs, we provide end-to-end services spanning PCB design, fabrication, and SMT assembly. We manufacture custom printed circuit boards with diverse substrate materials and advanced board structures. Whether you need quick prototype samples or large-volume mass production, we strictly follow IPC standards to guarantee stable quality, precise dimensions and reliable performance.
Our factory supports rigid, flex and rigid-flex PCB production. We work with FR4, high-speed, high-frequency, metal core, ceramic and PTFE materials, covering 1 to 50+ layers to satisfy different application scenarios.
