1. Specifications

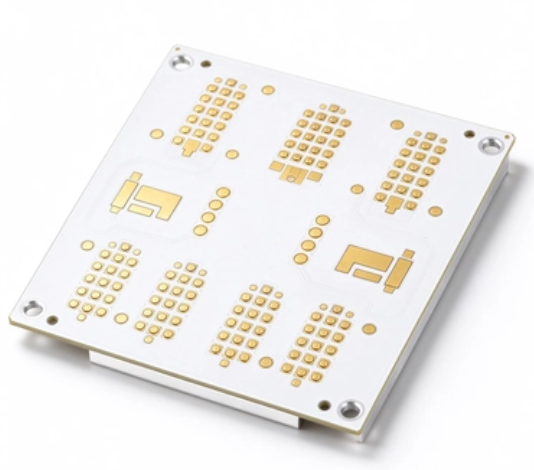

- Board Type: Metal Core Printed Circuit Board (MCPCB / Aluminum PCB)
- Base Material: Aluminum alloy 1060 / 5052, high thermal conductivity grade
- Dielectric Layer: Thermally conductive insulation layer, 75μm – 150μm
- Copper Foil: 1oz (35μm) / 2oz (70μm) / 3oz (105μm), electrolytic copper
- Thermal Conductivity: 1.0 W/m·K / 1.5 W/m·K / 2.0 W/m·K / 3.0 W/m·K / 4.0 W/m·K optional
- Board Thickness: 1.0mm / 1.5mm / 2.0mm
- Solder Mask: Green / White / Black LPI, UL94 V-0, anti-yellowing formula
- Surface Finish: HASL-LF / ENIG / OSP
- Minimum Trace / Space: 0.15mm / 0.20mm
- Maximum LED Power Support: Up to 100W per module area, customizable
- Breakdown Voltage: ≥2500V AC
- Insulation Resistance: ≥1000 MΩ
- Maximum Operating Temperature: 130°C
- Certification: UL, RoHS and REACH
- Quality Test: 100% open/short test + thermal resistance verification
2. Performance Characteristics
- Superior heat dissipation: the aluminum base directly conducts heat from LED chips to the heatsink, significantly reducing junction temperature compared to standard FR-4 PCB
- Lower thermal resistance: thermally conductive dielectric layer minimizes heat transfer resistance between copper circuit and aluminum base
- Extended LED lifespan: by keeping LED chips at lower operating temperatures, lumen depreciation is reduced and service life is extended
- High current carrying capacity: thick copper foil (up to 3oz) supports high-current LED driver circuits
- Stable electrical insulation: dielectric layer prevents short circuit between copper traces and aluminum base, with high breakdown voltage
- Good mechanical strength: rigid aluminum base resists warping during soldering and operation
- Low water absorption: stable performance under high humidity environments
- Dimensional stability: consistent flatness for reliable LED component mounting
3. Manufacturing & Process Advantages
- High thermal conductivity dielectric options: customers can select thermal conductivity grade based on their power density and heatsink design
- Controlled dielectric thickness: consistent thermal performance across every batch
- Thick copper capability: supports up to 3oz copper for high-current LED power circuits
- White solder mask option available: high reflectivity (>90%) boosts LED light output efficiency
- Anti-yellowing solder mask: maintains color and thermal stability under long-term high-temperature operation
- Strict insulation resistance testing: verifies no dielectric breakdown before shipment
- Custom outline, mounting holes and cutouts: tailored to different LED module form factors
- Panel optimization: maximizes LED modules per panel to reduce cost for mass production
- Fast prototype turnaround: standard MCPCB designs available in 3–5 working days
- DFM support: engineering team provides feedback on thermal layout and trace design optimization
4. Typical Applications
- High-power LED lighting: high bay lights, street lights, flood lights, tunnel lights
- LED panel lights and commercial downlights
- Automotive LED headlights and daytime running lights
- LED stage lighting and architectural lighting
- UV LED curing modules and infrared LED heating modules
- LED driver power supply boards
- Spotlight and track lighting systems
- Outdoor LED displays and signage backlighting
5. About Us
We are a professional PCB manufacturer based in China, specializing in OEM/ODM custom printed circuit board production for global customers. With years of manufacturing experience, we provide one-stop PCB solutions covering standard FR-4 boards, aluminum MCPCBs, HDI boards, high-frequency boards, ceramic substrates and rigid-flex PCBs.
Our factory is equipped with advanced production lines and testing facilities, ensuring reliable quality from prototype to mass production. We strictly follow IPC standards and hold UL, RoHS and REACH certifications. Our engineering team provides DFM feedback, technical support and fast response to customer inquiries.
