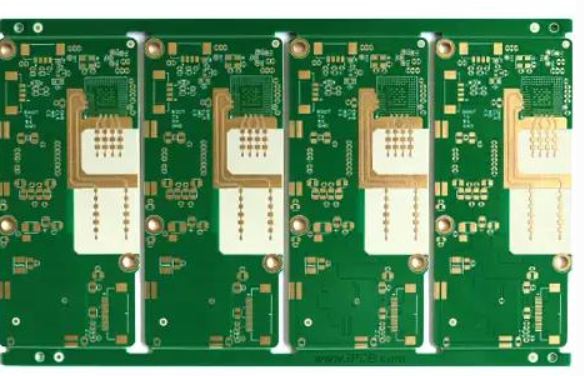

Volectronics offers Rogers 4003C hybrid high-frequency PCBs engineered for demanding RF, microwave, and millimeter-wave applications. The RO4003C material is a hydrocarbon/ceramic reinforced woven glass laminate featuring a stable dielectric constant (Dk 3.38 ±0.05) and low dissipation factor (Df 0.0027 at 10 GHz), ensuring minimal signal loss and consistent impedance across the operating frequency range.
The “hybrid” construction combines Rogers high-frequency layers for critical RF circuitry with cost-effective FR4 inner layers, balancing radio-frequency performance with overall board cost. Precise impedance control (50 Ω, ±5–10%), low-profile copper foil, and controlled fiberglass weave effects ensure low insertion loss, low return loss, and reliable phase consistency for antennas, power amplifiers, filters, and RF front-end modules.
Key Specifications:
- Material: Rogers RO4003C (Hydrocarbon/Ceramic + Woven Glass)
- Dielectric Constant (Dk): 3.38 ±0.05 (8 mil, 10 GHz)
- Dissipation Factor (Df): 0.0027 (10 GHz)
- Frequency Range: DC ~ 10 GHz+
- Stackup: Rogers + FR4 hybrid mixed lamination
- Impedance Control: 50 Ω, ±5–10%
- Surface Finish: ENIG / Immersion Tin / OSP
- Flame Rating: UL 94V-0, Halogen-Free
Key Advantages:
- Low-loss material for clean, low-attenuation RF signal transmission
- Stable Dk for consistent impedance and low reflection
- Hybrid design: RF performance on Rogers layers, cost savings on FR4 inner layers
- Low water absorption, dimensional stability, and environmental robustness
Typical Applications:
- Communication base stations and antennas
- Power amplifiers (PA) and RF front-end modules
- Filters, duplexers, and combiners
- RFID and RF identification systems
- Test and measurement instruments
- Automotive radar and industrial RF systems
VolectronicsTech Co., Ltd was established in 2017 and is dedicated to providing one -stop services for orders ranging fromprototyping and small-to-medium batch production to large-scale mass production.
We offer a diverse selection of PCB material, including FR4, Rogers, Metal based, TU, Isola, PI, and other high-frequency material, providing a wide range of options to meet your specific requirements.Welcome to contact us!
